H24 Hydraulic Concrete Placing Boom
- H 24 has R type folding system with 3 sections and also 24 m boom length, 4 m end hose.
- H 24 is mounted to the building with cross base at the foundation level or with the floor frames after a certain floor height.
- As the building rises, the machine is increased with the help of hydraulic climbing system.
| Features | Size |
|---|---|
| Working Area radius | 24 m. |
| Working Area | 1810 m2 |
| Total Boom Length | 24.000 mm |
| End Hose Length | 4 m |
| Slewing Angle | 360° (Free) |
| Machine Weight | 9.550 Kg |
| Control | Kablolu (Remote) Kablosuz (Radio) |
| Electric Motor | 15 kW, 380 - 400 V, 3 Phaze |
| Hydraulic Oil Tank | 150 Liter |
| Maximum System Pressure | 330 Bar |
| Transport Length | 13,60 mt. Truck |
| Trasnport Width | 13,60 mt. Truck |
| Transport Height | 13,60 mt. Truck |

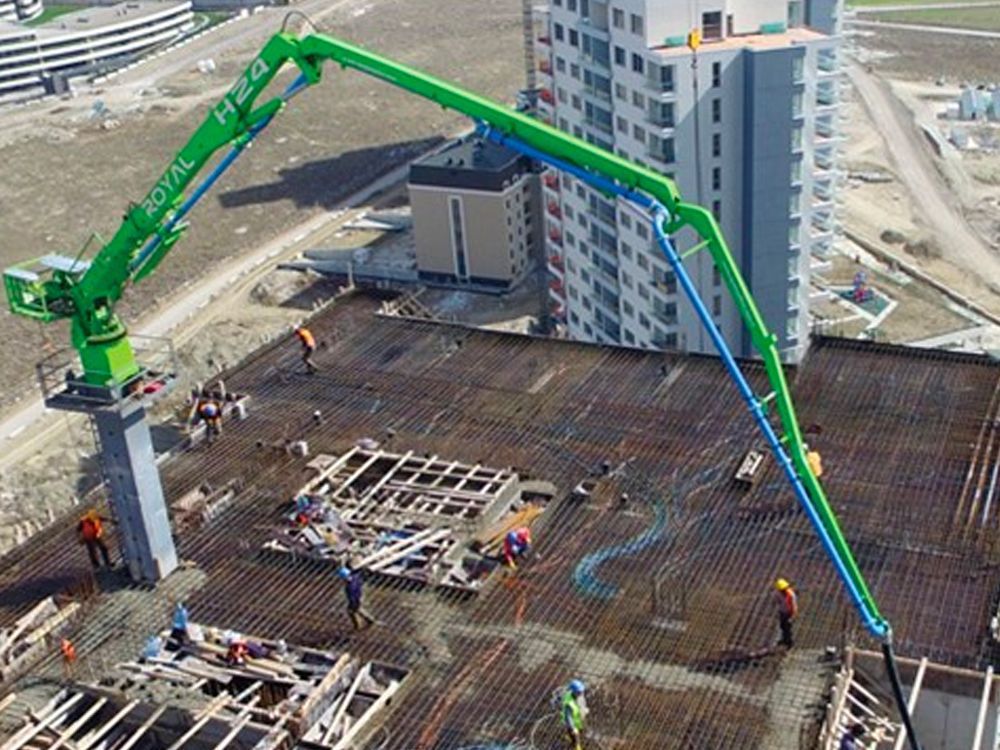

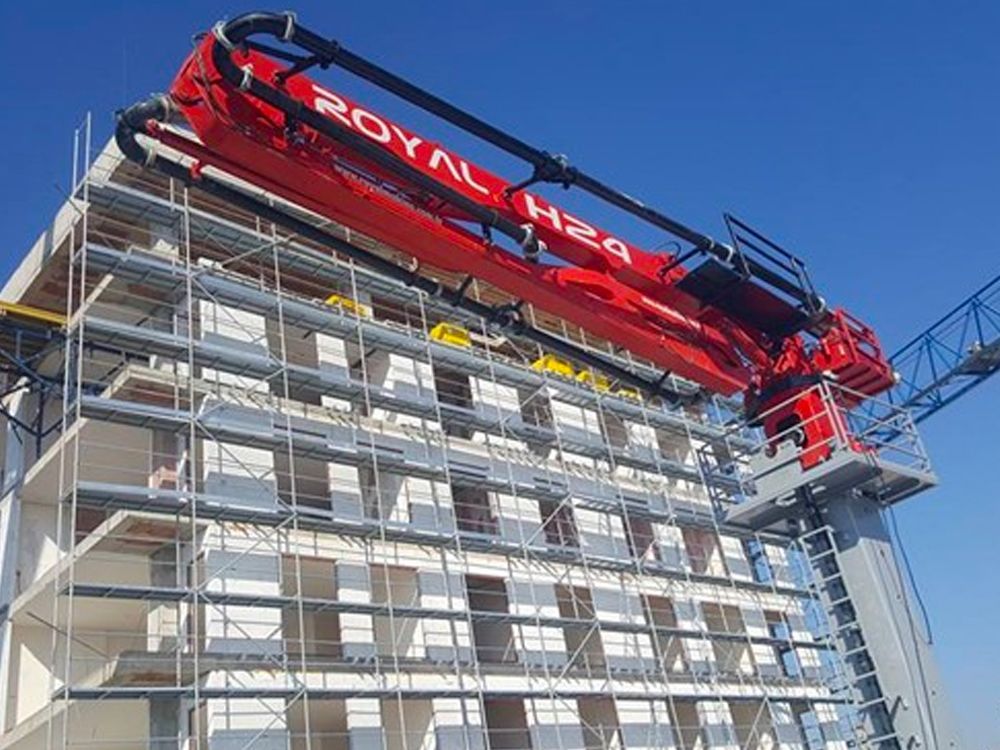

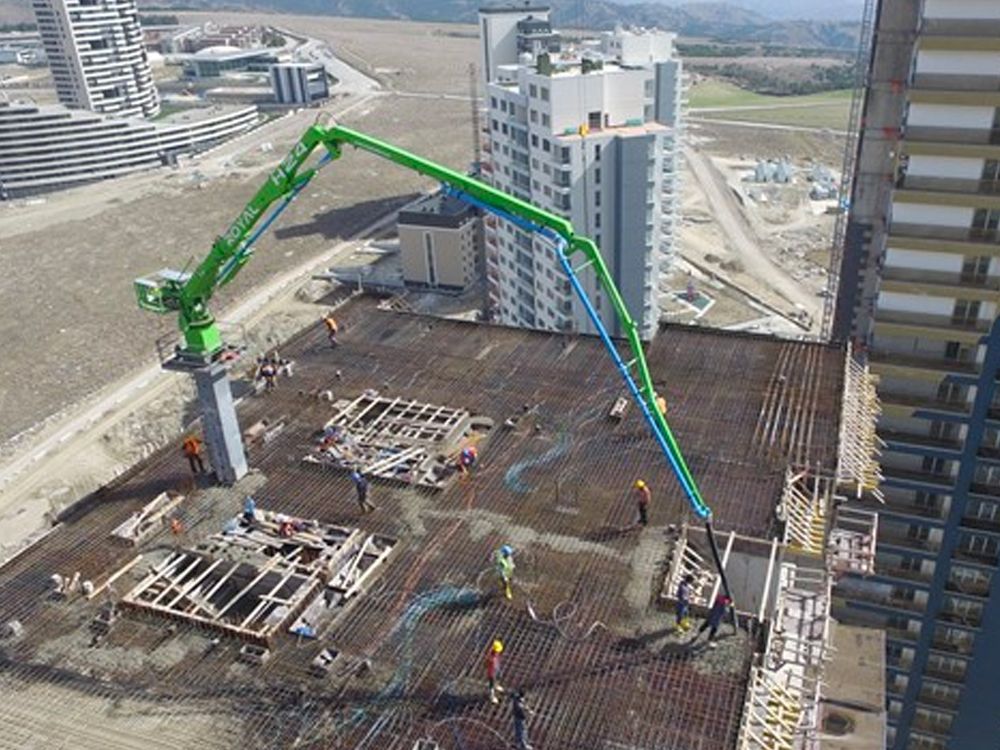

Product Photos
