H18 + 3 Hydraulic Concrete Spider
- Hydraulic concrete distributor H 18 can be used on both leg set and mast set.
- On the leg frame usage, can be used at different buildings simultaneously because of not being mounted to the building.
- H 18 can be splitted into 3 main parts, according to tower crane lifting capacity.
- H 18 is the longest and the lightest model of the class.
- H 18 is the indispensable concrete distributor of the large-scale projects.
- Especially preferred at the shopping mall, otel and hospital construction projects.
| Features | Size |
|---|---|
| Working Area radius | 18 m. |
| Working Area | 1017 m2 |
| Total Boom Length | 18.000 mm |
| End Hose Length | 3 m |
| Slewing Angle | 360° (sonsuz) |
| Machine Weight | 3700 Kg |
| Ballast Weight | 2400 Kg |
| Total Weight | 6100 Kg |
| Control | Radio Control Opsiyonel |
| Electric Motor | 7,5 kW, 380 - 400 V, 3 Phaze |
| Hydraulic Oil Tank | 80 Litre |
| Maximum System Pressure | 330 Bar |

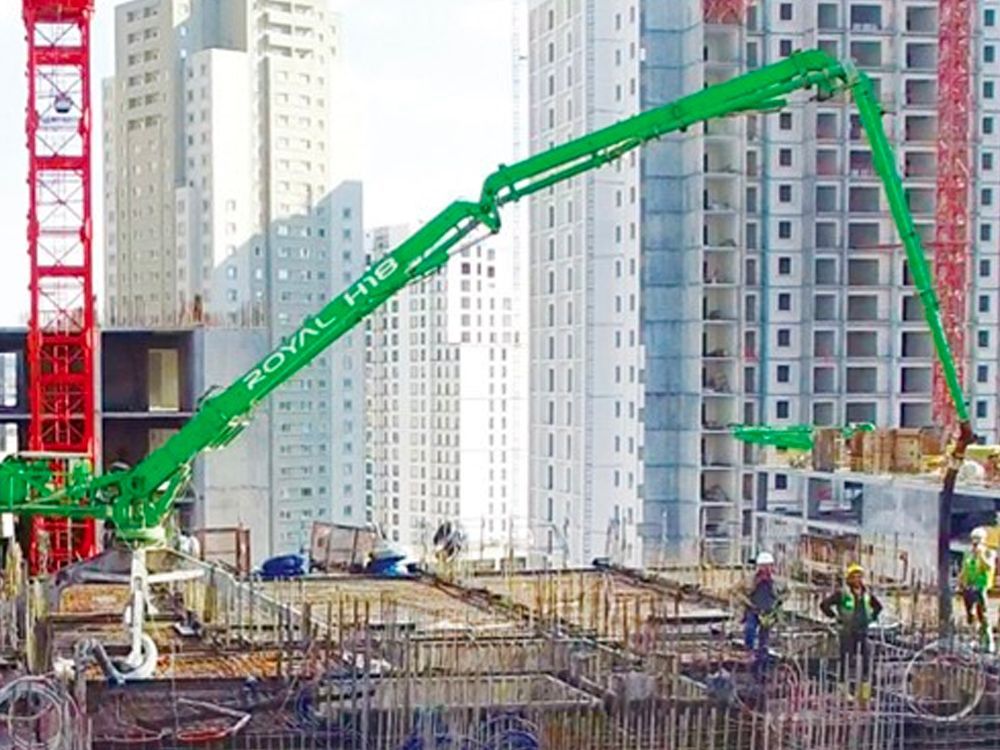

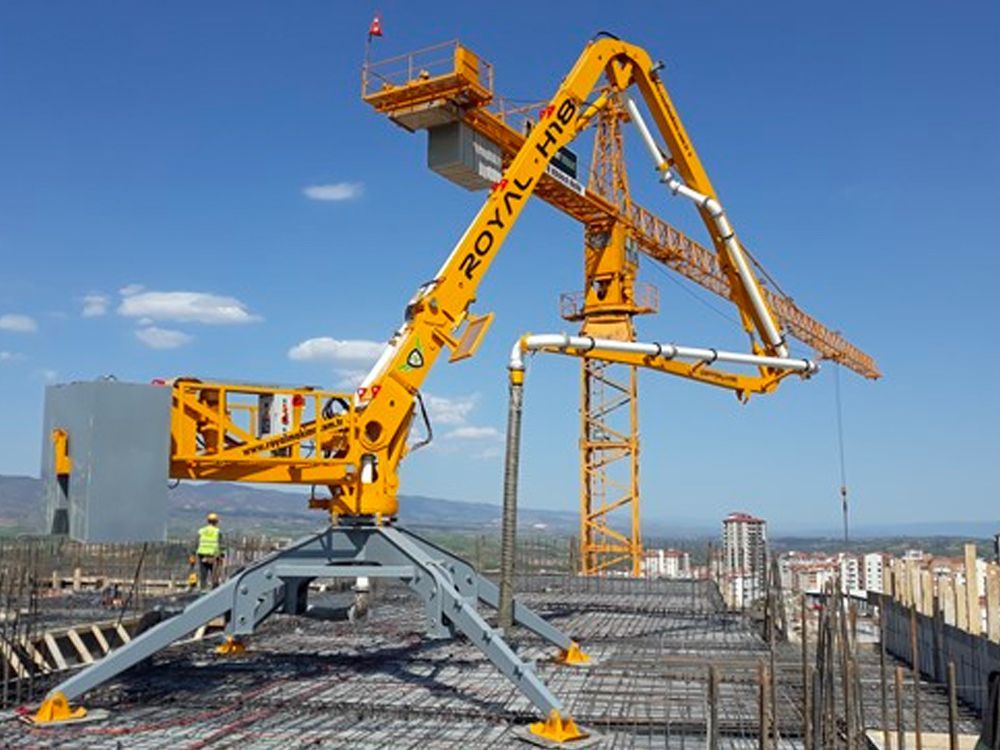

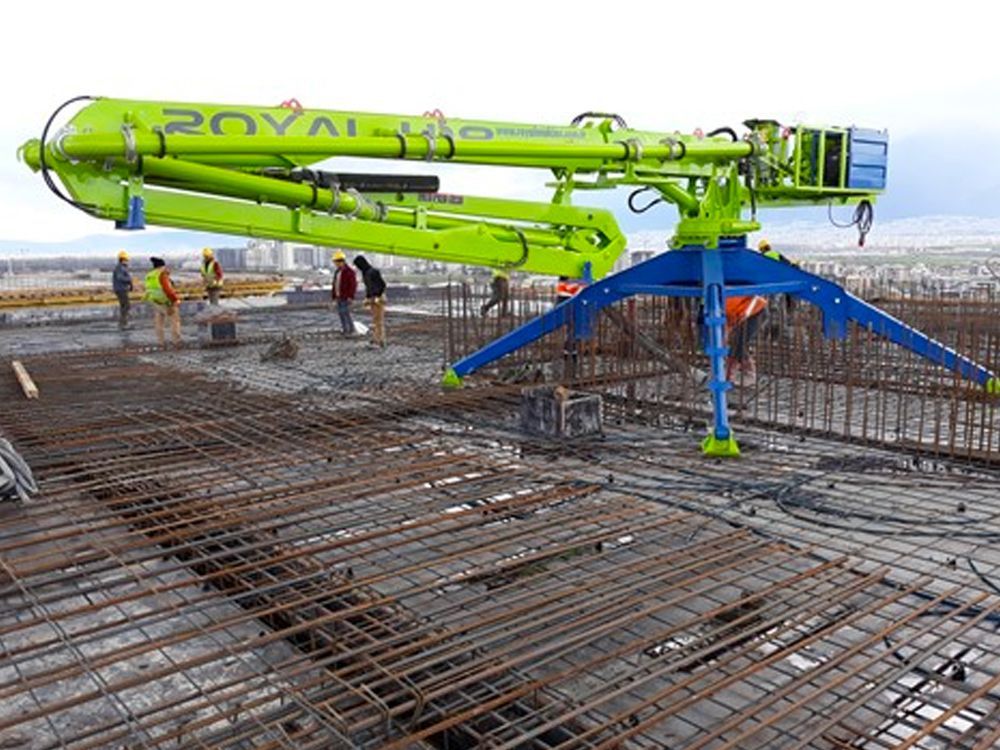

Product Photos
