H15 + 3 Hydraulic Concrete Spider
- Hydraulic concrete distributor H 15 can be used on both leg set and mast set.
- On the leg frame usage, can be used at different buildings simultaneously because of not being mounted to the building.
- H 15 can be splitted into 2 main parts, according to tower crane lifting capacity.
- H 15 is the lightest model of the class.
- H 15 is the indispensable concrete distributor of the large-scale projects.
- Especially preferred at the restricted ceiling height, such as tunnel,damn and hydroelectric plant projects.
- With the Z boom design, can be rolled and folded at the 4.8 meter ceiling height.
- With the optional walking group, can be moved by the help any kind conctsruction machine inside the tunnel.
| Features | Size |
|---|---|
| Working Area radius | 15 |
| Working Area | 710 m2 |
| Total Boom Length | 15.000 mm |
| End Hose Length | 3 m |
| Slewing Angle | 360° (Free) |
| Machine Weight | 2900 Kg |
| Ballast Weight | 2000 Kg |
| Total Weight | 4900 Kg |
| Control | Manuel- Optional Radio Control |
| Electric Motor | 7,5 kW, 380 - 400 V, 3 Phaze |
| Hydraulic Oil Tank | 80 liters |
| Maximum System Pressure | 300 Bar |

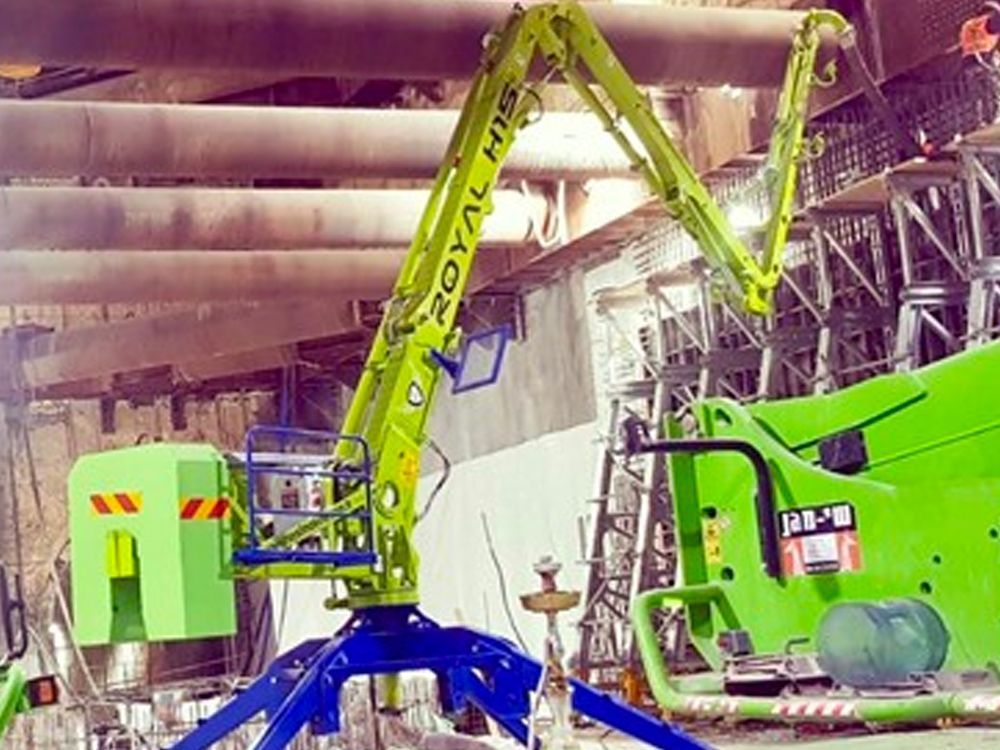

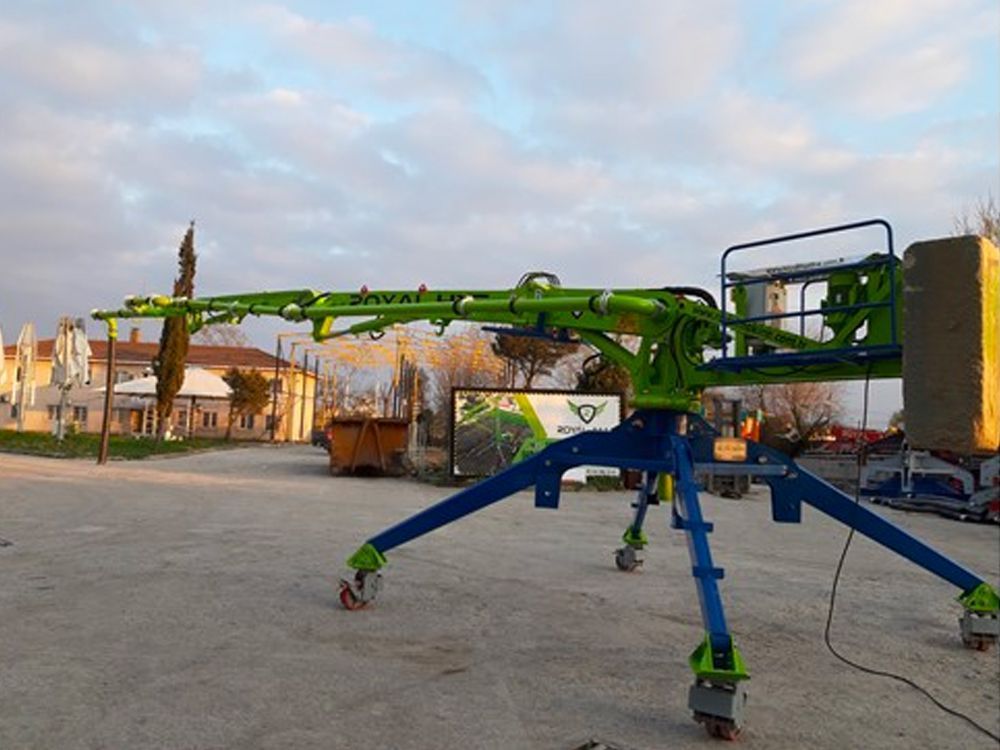

Product Photos
